Truck and railway scales

Truck and railway scales

MASISTE manufactures and distributes all types of truck scales, providing different solutions for the market demand: concrete floor scales, embedded concrete scales, metal floor scales or embedded metal scales to which we add our capacity to transform hybrid truck scales into electronic scales. In addition, our customers have a wide range of van scales, public weighing scales and truck weighing indicators (for installation on the ground, in a pit, with a metal finish, in concrete...).

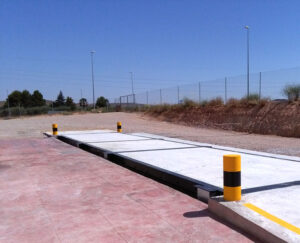

Concrete weighbridges

Concrete weighbridges

The electronic concrete weighbridges have a useful width of 3000 mm (optional 3300 mm) with 6/8 support points and can be ordered in three parts. The concrete weighbridges have adjustable movement stops in both directions to avoid stress on the load cells and can be adapted to any load cell on the market. The electronic concrete floor scales also have a useful width of 3000 mm (optional 3300 mm) with 6/8 support points. Formed by 2 longitudinal IPE profiles and concrete in the rolling part and the possibility of being made in three parts, being able to adapt to any cell on the market.

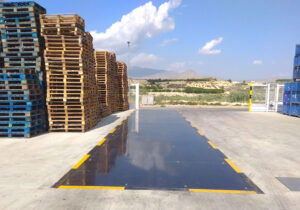

Metallic weighbridges

Metallic weighbridges

The electronic metallic weighbridges have a useful width of 3000 mm (optional 3300 mm) with 4/6/8 support points depending on the length of the weighbridge. The electronic weighbridges are made up of modular systems with headers for the standard version, fully removable platform and adjustable movement stops in both directions to avoid stress on the cells. Their structures can be adapted to any cell on the market.

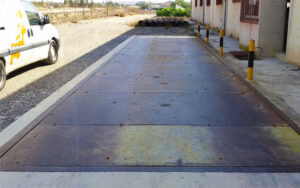

Hybrid transformations

Hybrid transformations

At Masiste we are specialists in the conversion of mechanical to electronic scales, combining the precision and robustness of mechanical lever scales with the speed and convenience of electronics. The hybrid conversions are lower cost scales than the electronic ones, with the same load capacities.

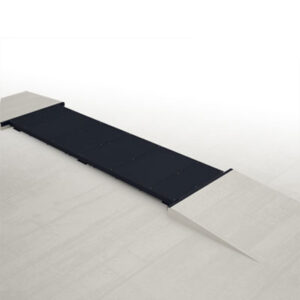

vehicle scales

Vehicle scales

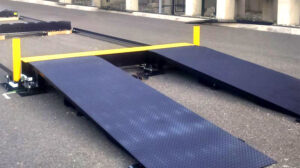

Metal scales for vehicles and vans can be floor-mounted or flush-mounted. With omnidirectional movement on the platform, they are particularly useful in confined spaces. With capacities from 6,000 kg to 15,000 kg, their dimensions vary between 5, 6 and 8 m. in length and 2.3 m. and 2.5 m. in width. Masiste's metal scales for vans can be installed with their own metal ramps when they are placed on the ground.

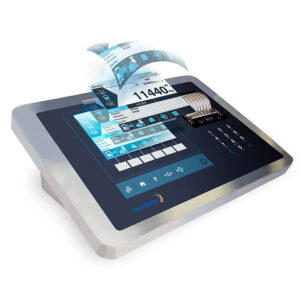

indicators and software

Indicators and software

The Masiste truck weighing indicators have an alphanumeric indicator with monochrome graphic display of 240 x 128 points, single or multi-range, and can be configured and adjusted by keyboard and/or remotely through a communications port. The indicators can be connected to two RS-232 ports, one RS-485 port or an additional free port. They have an alphanumeric keypad, universal power supply (100-240 V AC, 50/60 Hz and 10-20 V DC), linearity correction system and different selectable applications (truck weighing, tare weighing, piece counting, weigh accumulation and programmable preset tares). The truck weighing software program allows real-time readout of up to 7 weight indicators at the same time. Compatible with Automatic Weighing Terminals (TPA), SQL Server database, integrated delivery note editor, issuing of valued delivery notes... It also allows automatic generation of historical records, different access modes, internal audit management... all in the truck weighing software program.

Accesories

Accesories

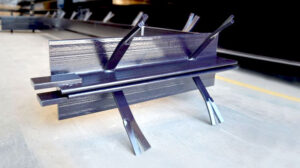

Masiste has a wide variety of accessories for truck weighing and control, among which the following stand out: perimeter angles for the top of the pit of built-in scales, perimeter angles for site ramps of floor scales, perimeter railings for weighbridges, autonomous station terminals, weighing management software and access control software, among which Masiste develops number plate readers, barriers and traffic lights.

Accesories 1
Accesories 2
